ASP.NET Core & Vue.js Starter with Trilon + Dapper Micro ORM

Hello, my name is Harry. I created this sample on how to get started with C# Asp.net Core + Vue. Vue is kind of new and lack of support with Asp.net Core in the meantime. Using the Trilon template makes easy for us. Please follow the simple steps and let me know how you like it. 🙂 Happy coding.

Let’s get started

// Make a directory where you want the project
mkdir my-vue-starter && cd my-vue-starter
// Download the dotnet template
dotnet new -i aspnetcore-vuejs
// Run and install the template
dotnet new vuejs
// Make sure you install the dependencies
npm install

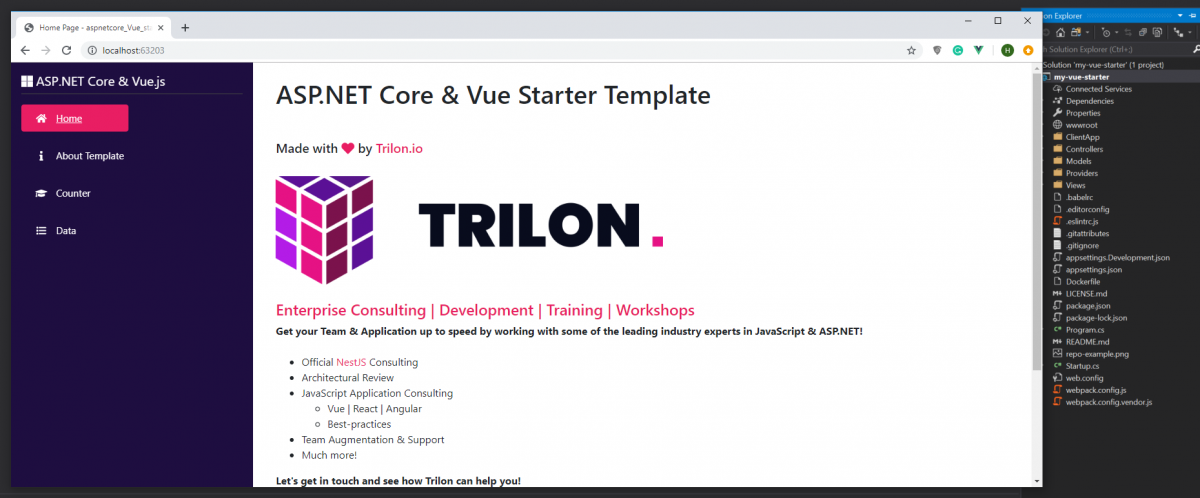

You should get like this

Let’s make some HTTP Get Request

Create database “vuecore “, table ” tblPersons” and stored procedure “getPersons“

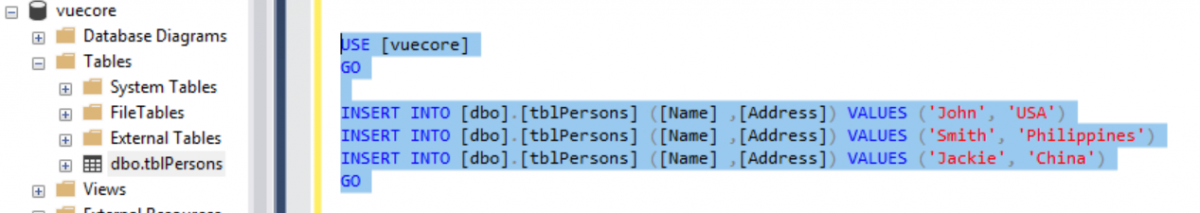

Insert Some Records

--Snippet
USE [vuecore]
 GO
 INSERT INTO [dbo].[tblPersons] ([Name] ,[Address]) VALUES ('John', 'USA')
 INSERT INTO [dbo].[tblPersons] ([Name] ,[Address]) VALUES ('Smith', 'Philippines')
 INSERT INTO [dbo].[tblPersons] ([Name] ,[Address]) VALUES ('Jackie', 'China')
 GO

Create Stored Procedure

CREATE PROCEDURE getPersons @Id int = null --Optional
 AS
 IF @Id <> ''
 BEGIN
   SELECT * FROM tblPersons WHERE Id = @Id
 END
 ELSE
 BEGIN
      SELECT * FROM tblPersons
 END
 GO

Setting Our API

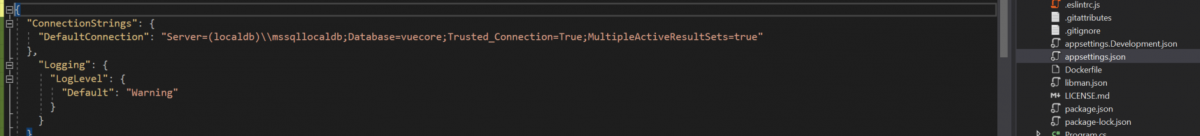

Creating “ConnectionStrings” in appsettings.json

{
   "ConnectionStrings": {
     "DefaultConnection": "Server=(localdb)\mssqllocaldb;Database=vuecore;Trusted_Connection=True;MultipleActiveResultSets=true"
   }
   }

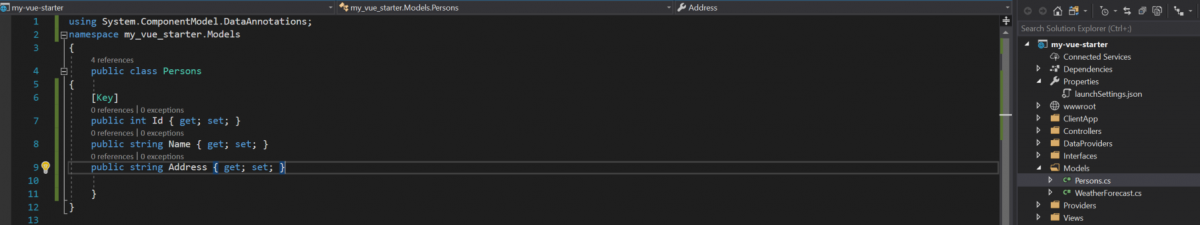

Creating “Persons” Model

using System.ComponentModel.DataAnnotations;
 namespace my_vue_starter.Models
 {
     public class Persons
 {
     [Key]
     public int Id { get; set; }
     public string Name { get; set; }
     public string Address { get; set; }
 }
 }

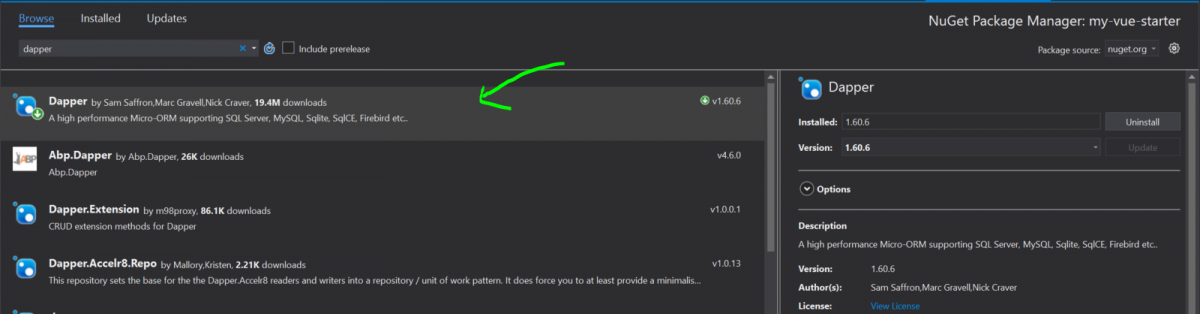

Install DAPPER using NPM

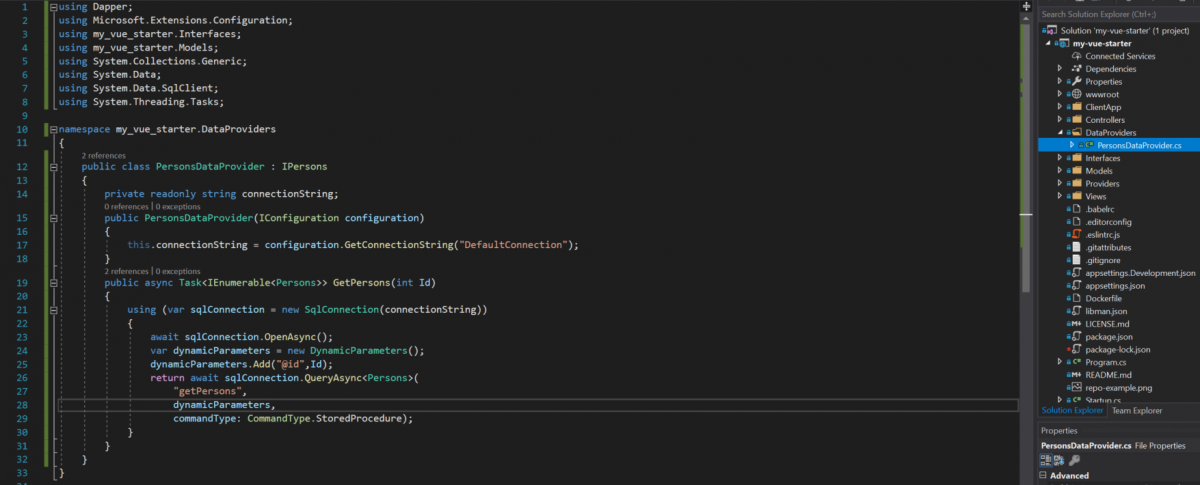

Creating “PersonsDataProvider”

using Dapper;
 using Microsoft.Extensions.Configuration;
 using my_vue_starter.Interfaces;
 using my_vue_starter.Models;
 using System.Collections.Generic;
 using System.Data;
 using System.Data.SqlClient;
 using System.Threading.Tasks;
 namespace my_vue_starter.DataProviders
 {
     public class PersonsDataProvider : IPersons
     {
         private readonly string connectionString;
         public PersonsDataProvider(IConfiguration configuration)
         {
             this.connectionString = configuration.GetConnectionString("DefaultConnection");
         }
         public async Task<IEnumerable<Persons>> GetPersons(int Id)
         {
             using (var sqlConnection = new SqlConnection(connectionString))
             {
                 await sqlConnection.OpenAsync();
                 var dynamicParameters = new DynamicParameters();
                 dynamicParameters.Add("@id",Id);
                 return await sqlConnection.QueryAsync(
                     "getPersons",
                     dynamicParameters,
                     commandType: CommandType.StoredProcedure);
             }
         }
     }
 }

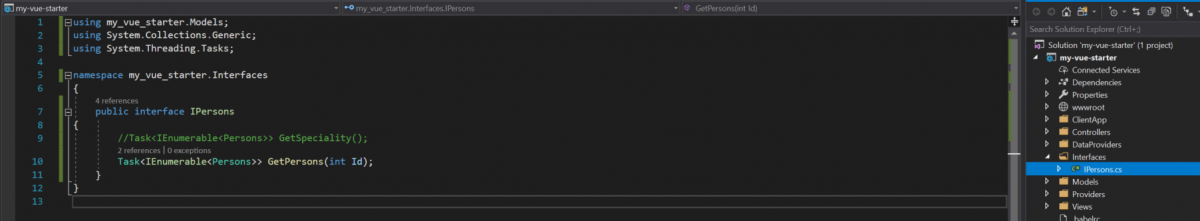

Creating “IPersons” Interface

using my_vue_starter.Models;
 using System.Collections.Generic;
 using System.Threading.Tasks;
 namespace my_vue_starter.Interfaces
 {
     public interface IPersons
 {
          Task<IEnumerable<Persons>> GetPersons(int Id);
     }
 }

Registering to Startup (Configuration)

services.AddTransient<IPersons, PersonsDataProvider>();

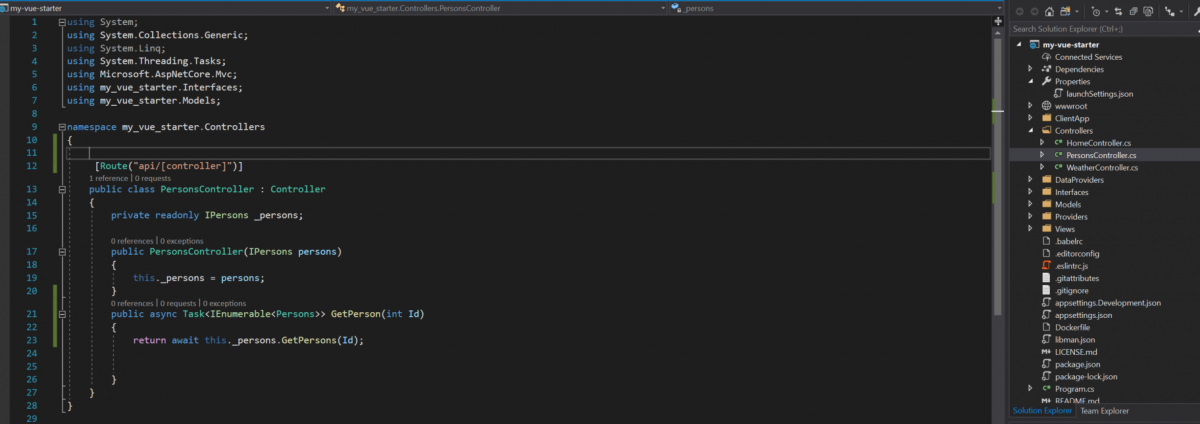

Creating “PersonsController”

 using System.Collections.Generic;
 using System.Threading.Tasks;
 using Microsoft.AspNetCore.Mvc;
 using my_vue_starter.Interfaces;
 using my_vue_starter.Models;
 namespace my_vue_starter.Controllers
 {
  [Route("api/[controller]")]
   public class PersonsController : Controller
    {
    private readonly IPersons _persons;
    public PersonsController(IPersons persons)
    {
        this._persons = persons;
    }
    public async Task<IEnumerable<Persons>> GetPerson(int Id)
    {
        return await this._persons.GetPersons(Id);
    }
  }
 }

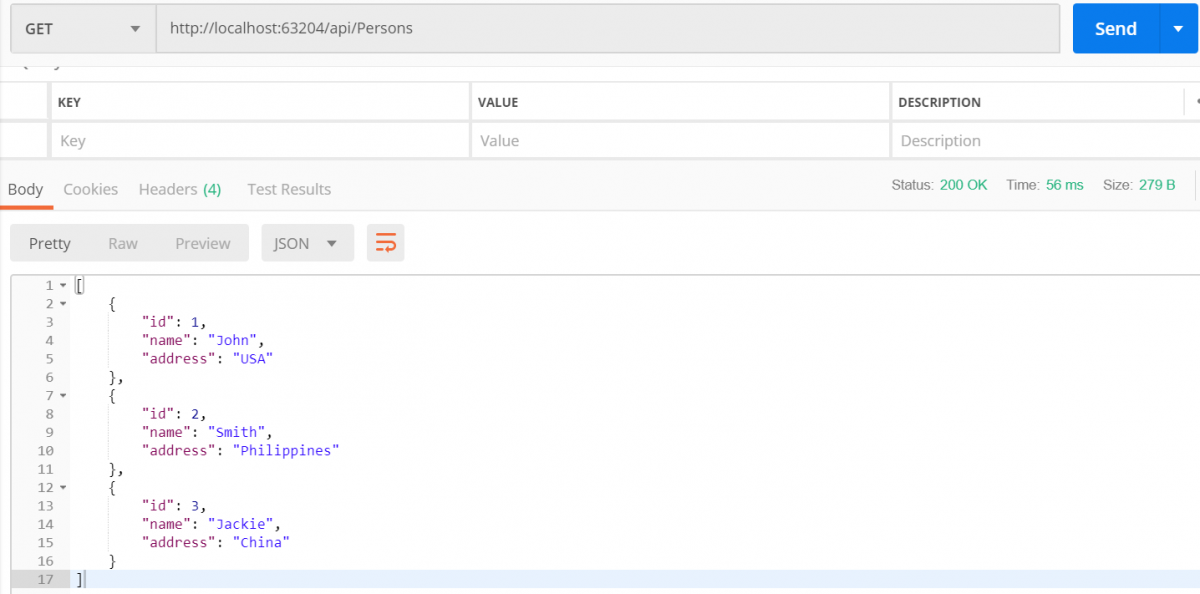

Test with Postman

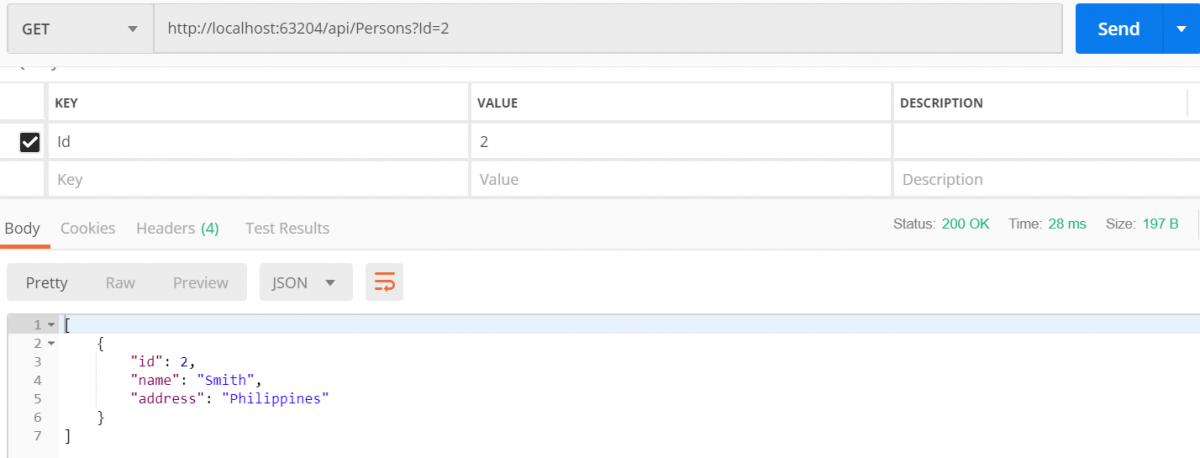

Get Person with “Id”

Configure ClientApp

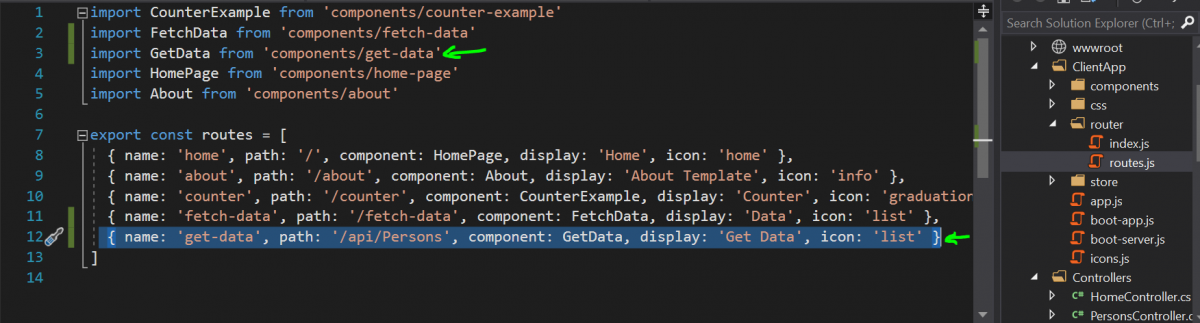

Registering our routes

import GetData from 'components/get-data'
{ name: 'get-data', path: '/api/Persons', component: GetData, display: 'Get Data', icon: 'list' }

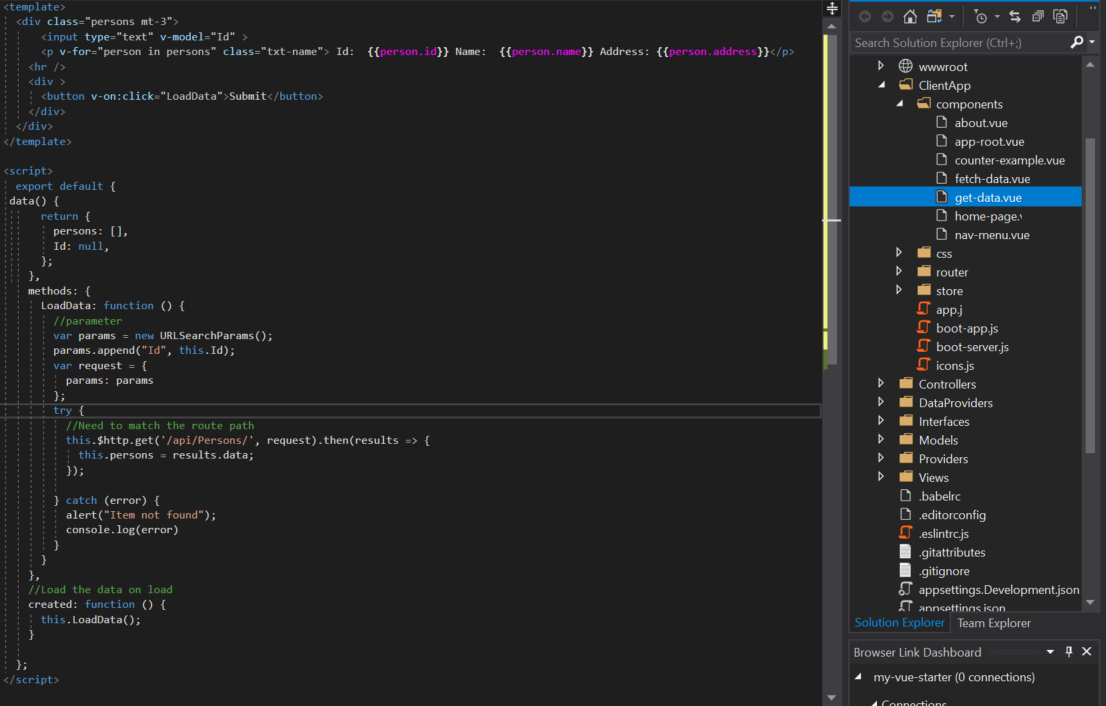

Adding “get-data.vue” component

Link to component get-data.vue

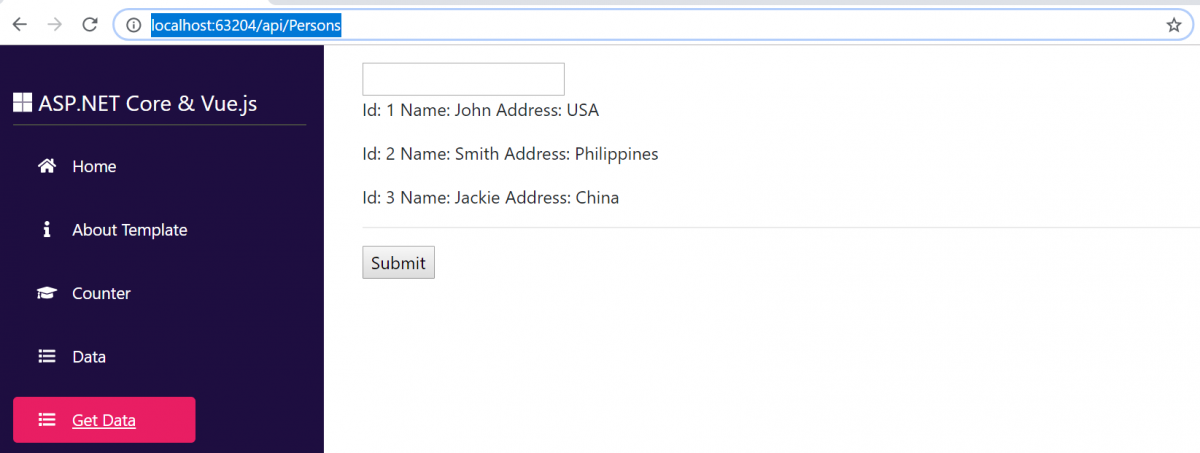

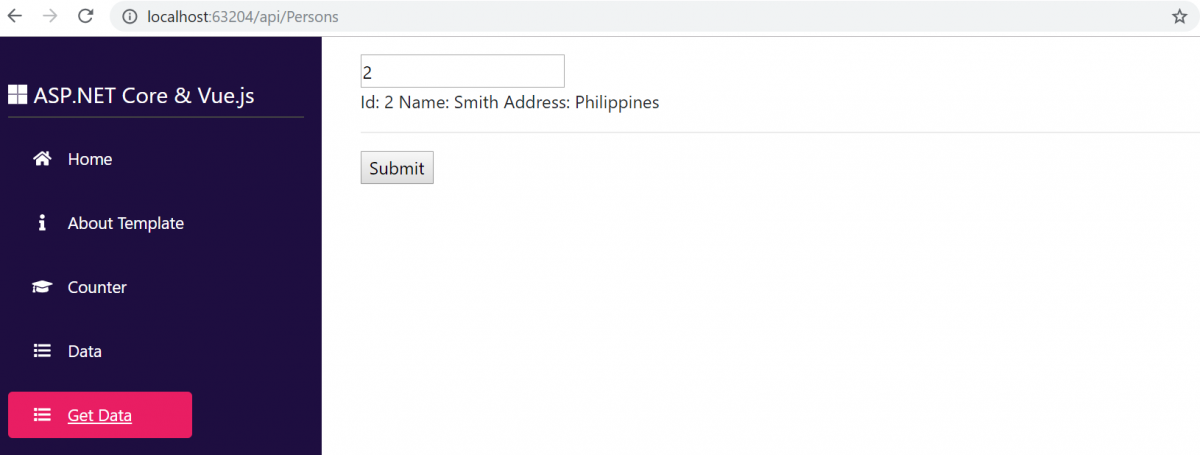

Final results

Download the code in GitHub

BIG CREDIT TO TRILON
